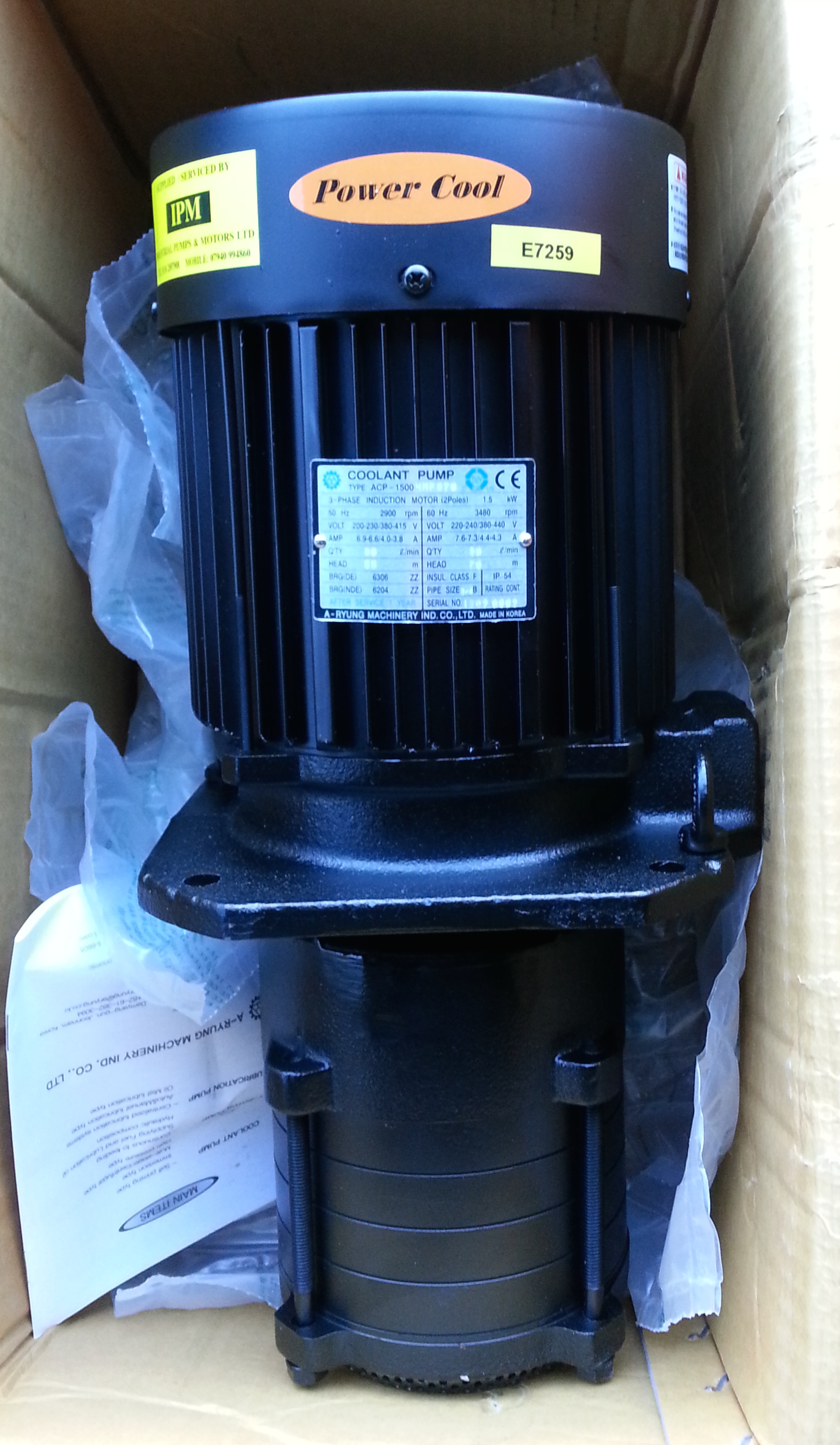

Here we have a photograph of an A-Ryung Machinery pump type ACP 1500

A-Ryung Power Cool 2013-10-29 14.49.19

This particular pump is one we supplied to a local engineering factory and fitted to one of their machine tools.

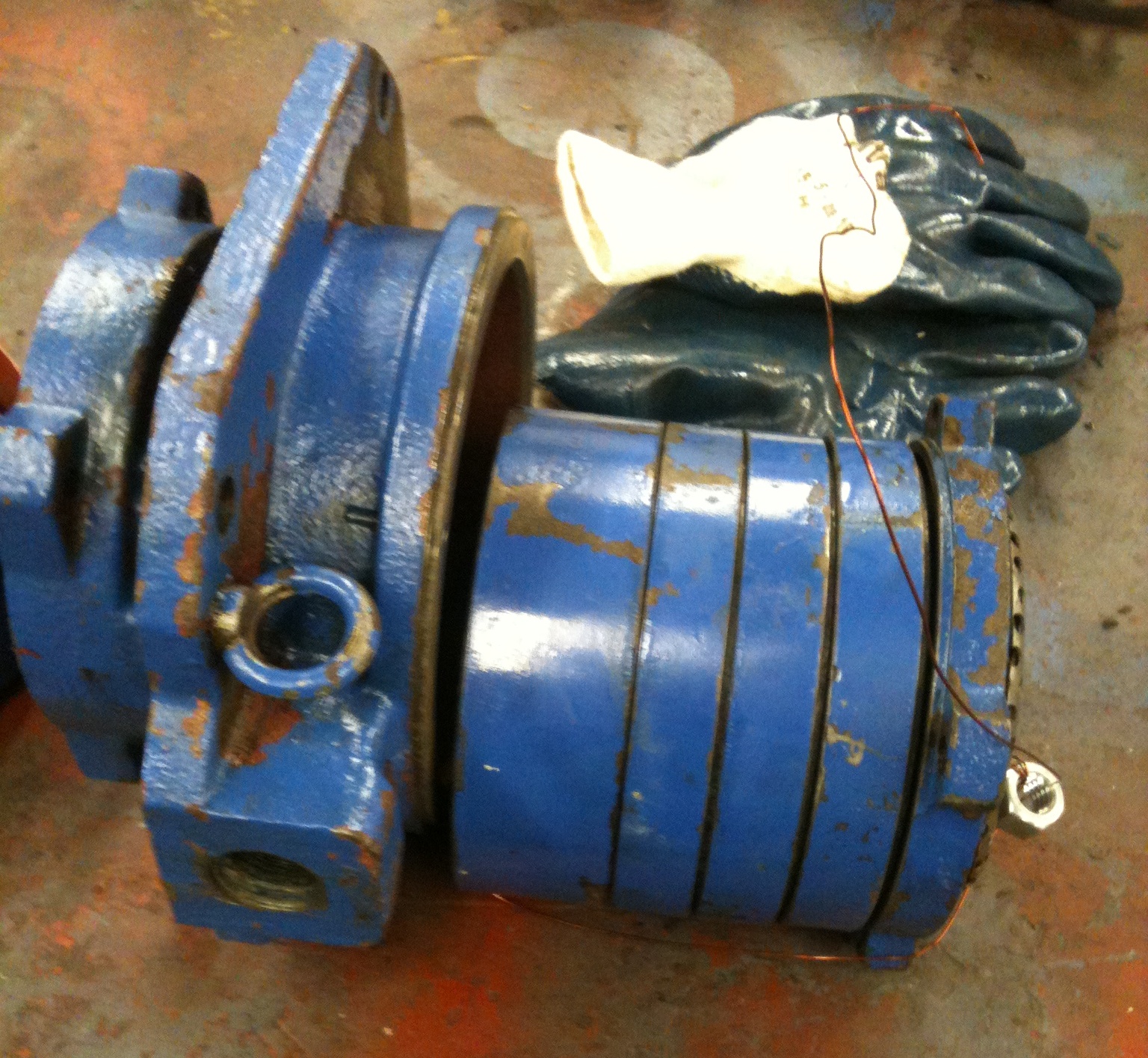

The pump is an immersible multi stage pump and you can clearly see the pump stages all held in place by four tie rods.

A-Ryung are a Korean Company and their pumps can be found on many machine tools supplying coolant at medium pressures to the cutting tool.

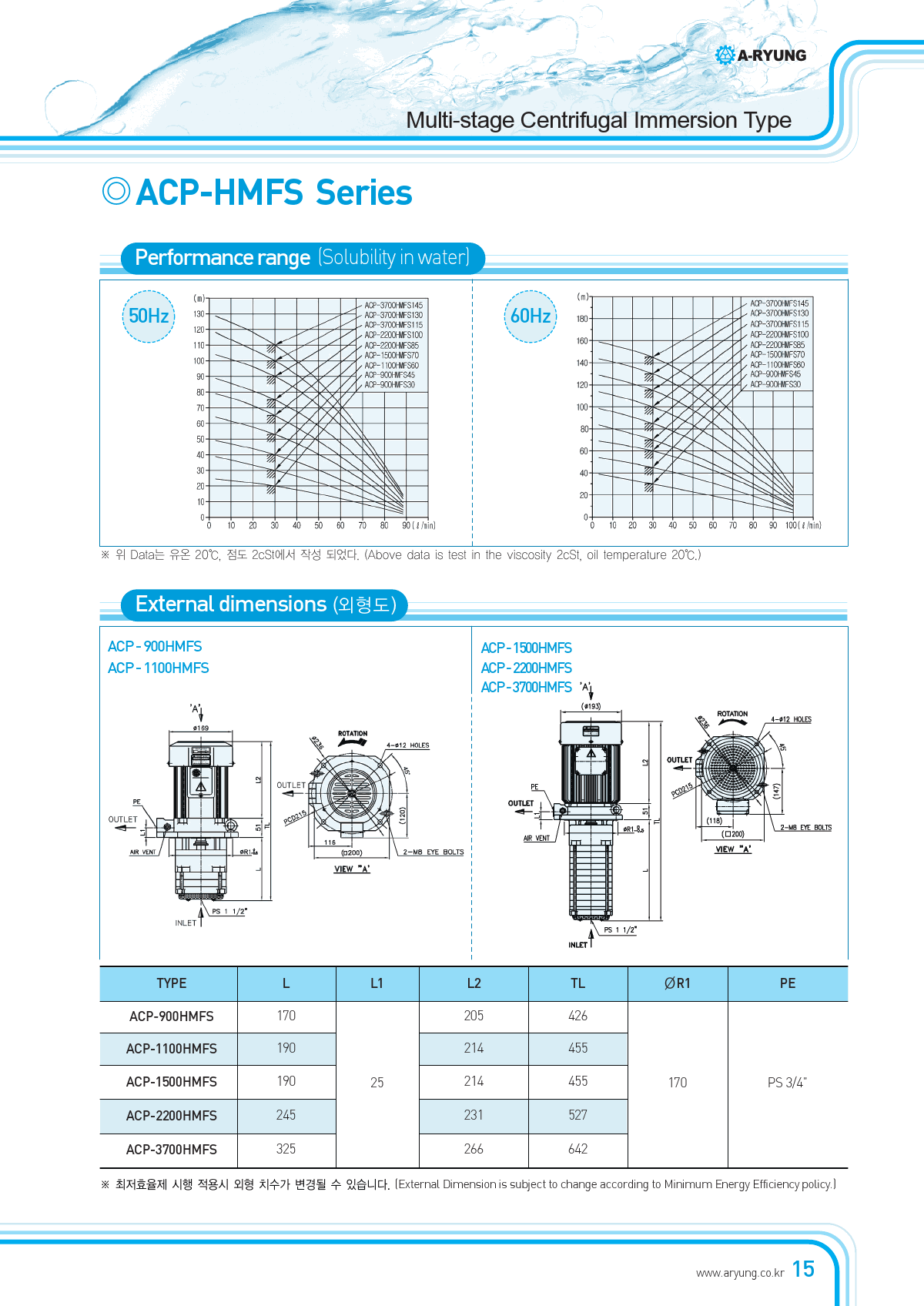

a-ryung curves

On the above data sheet you can see that there are other models available in this type, and that this particular pump has a range of between 1.0 and 6.0 bar and a maximum flow rate of approximately 90 litres per minute. You can also see the difference it makes to the pressure as you start increasing the number of stages fitted to the pump.

There are limited spares available to us for these pumps, but unless there is damage to the impellers and diffuser chambers, we are able to repair them.

Coolant pump repairs

Coolant pump repairs


We can also supply and repair other suds coolant pumps such as Sacemi, Brinkmann, Knoll and many others.

Please do not hesitate to contact us to discuss your requirements.
