Calpeda Idromat 5

Comments 0 by in standard
July 4, 2016

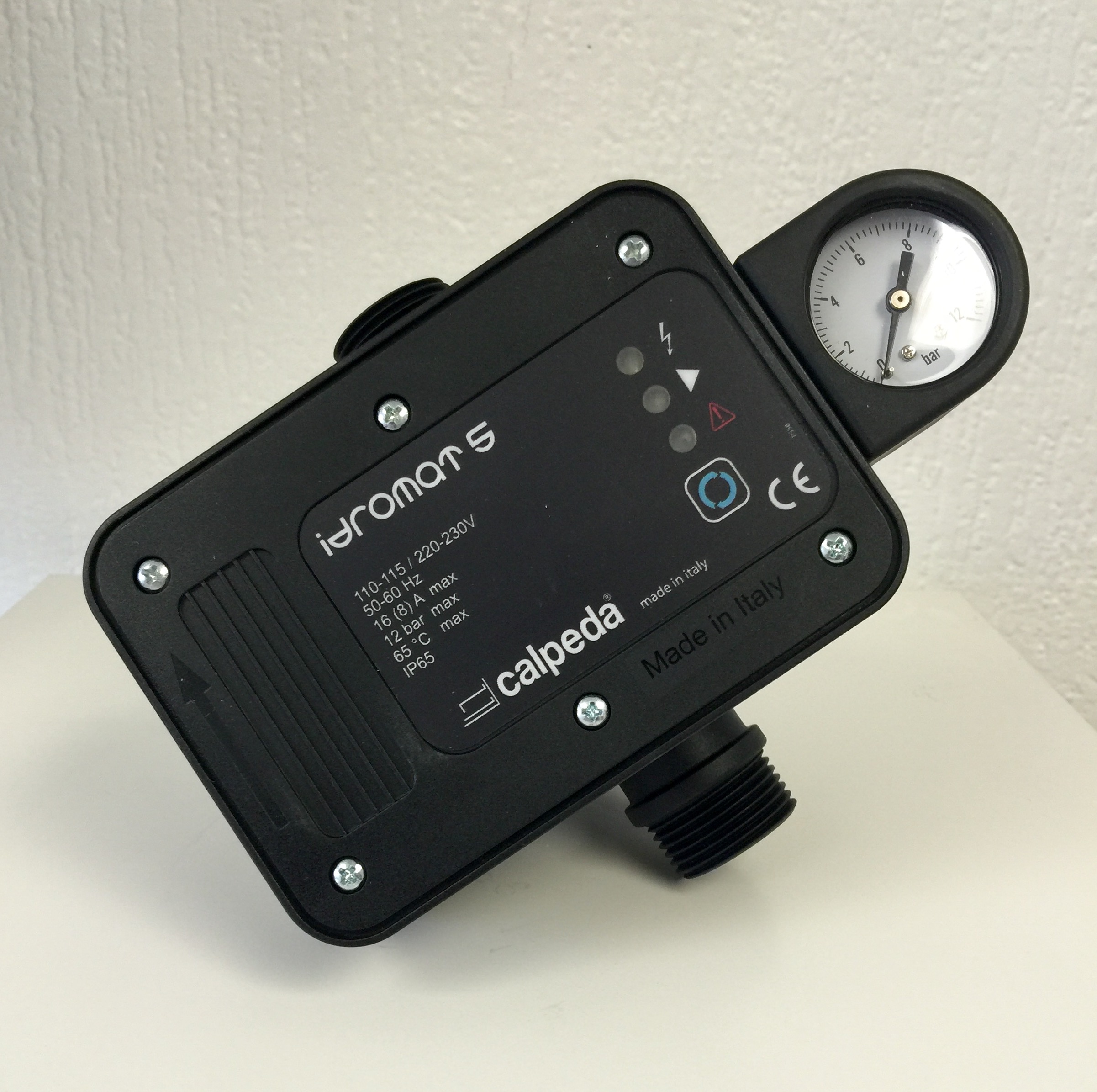

Here we have a photograph of the latest Calpeda Idromat 5 series

IMG_2064

The Idromat 5 replaces the previous versions :

3-12 is now Idromat 5-12

3-15 is now Idromat 5-15

3-22 is now Idromat 5-22

The Idromat 3-30 has not been superseded.

The Idromat 4 is now the Idromar 5

These units are a cost effective way of controlling the automatic stoping and starting of a 230 volt single phase water pump. Triggered by opening and closing any tap or valve.

They incorporate a dry run protection by means of a flow switch, and also feature a special non return valve to prevent water hammer. Other features include a pressure gauge, pressure switch, manual start (reset) switch, voltage LED (power), pump run LED and a LED failure light.

Starting pressures range from 1.2 to 3.0 bar and the port connections are one inch male BSP

Please do not hesitate to contact us for any further information or pricing, or download the instruction manual.

Click to download : IDROMAT5_04_2014
