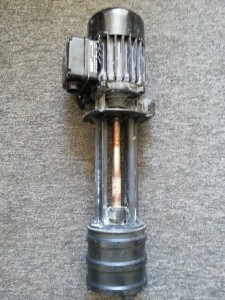

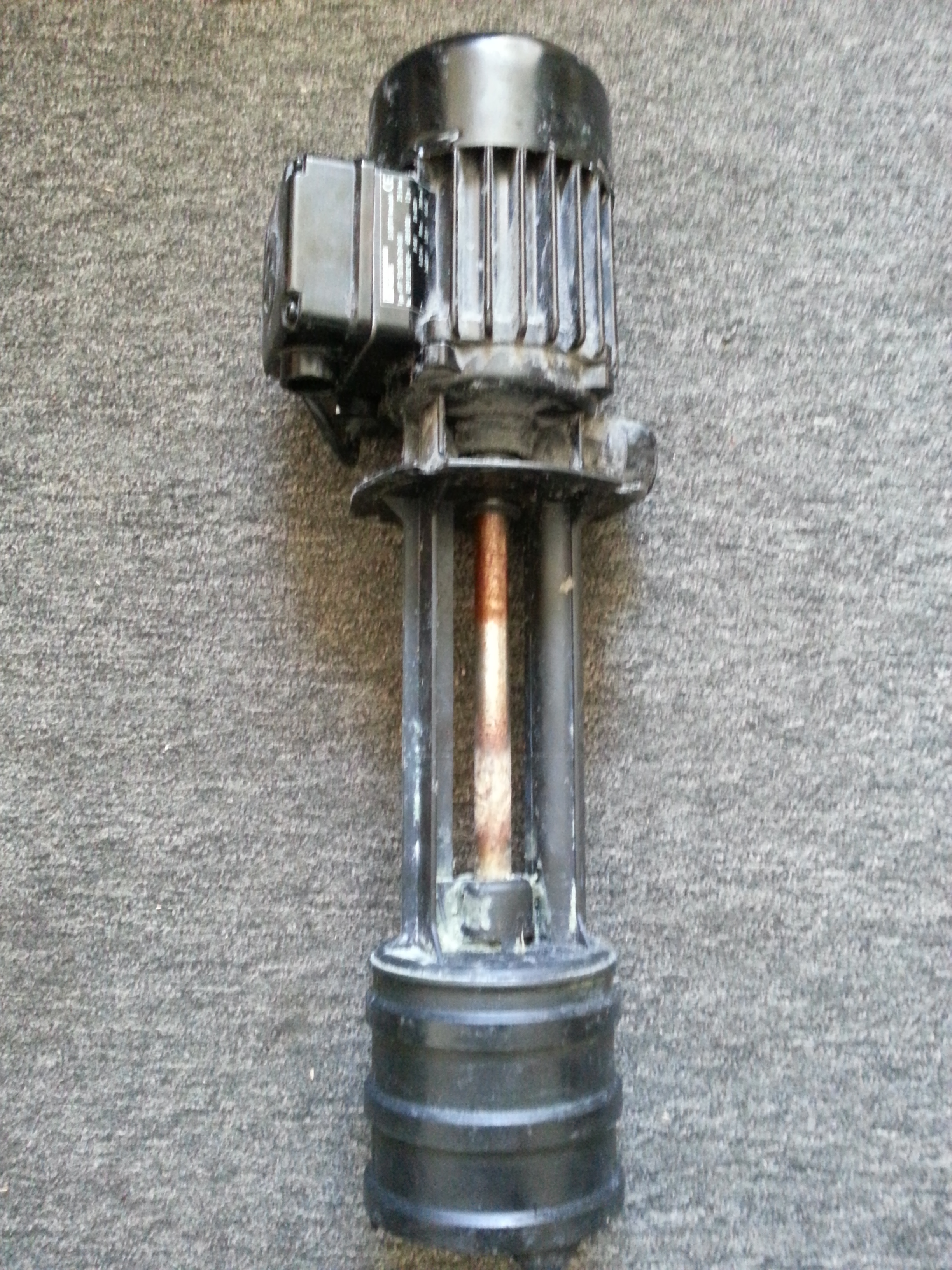

Here we have a photograph of a Brinkmann KTF53 immersible pump.

Our customer sent the pump in to us for either repair or replace.

Brinkmann Pumps

Brinkmann Pumps


The Brinkmann KTF pump range are constructed from PPS which is commonly known as Engineering Plastic or Polyphenylene Sulphide. The term “Plastic Pumps” can conjure up a few negative thoughts, but don’t be fooled, as PPS is a high temperature thermo plastic that possesses a number of advantageous properties including resistance to some acids, alkalis, and good abrasion qualities. The shaft is manufactured from 1.4104 stainless with a CrMo (Chrome Molybdenum) option if required. Commonly used for light chemical duties and distilled, de-ionnized water. Flow rates (depending on model) can go out to 100 litres per minute and maximum head of approximately 24 metres can be achieved.

Available in both singe and three phase, and with stem lengths ranging from 120mm up to 340mm, the full model range is :

KTF25, KTF40, KTF51, KTF52, KTF53, KTF54, KTF81, KTF82, KTF83

For further information on the above or on any other Brinkmann pump, please do not hesitate to contact us.

Technical data sheets and operating manuals are available for download below.

ktf25…ktf83_en be5400_ktf25…ktf83
